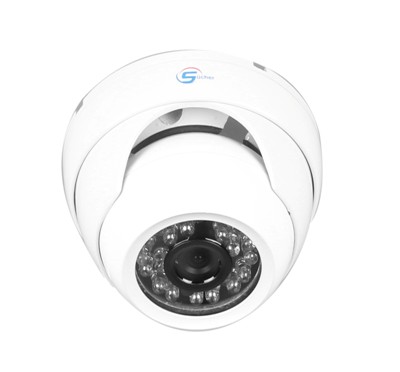

* Using High perfomance Sony CCD Effio E-DSP Sensor, high resolution and low power consumption
* Easy to use, works as a security camera
* More View, Sense
* More Safe and helpful for home or store
* Advanced the security level
* Designed for engineering with precise circuit & structure
* Designed with dome metal shell
* 0 LUX with IR
* Support IR CUT
* Support OSD Menu

Image Sensor 1/3" Sony CCD Effio E-DSP Sensor

Signal System PAL/NTSC

Horizontal Resolution 700 TVL

Minimum Illumination 0 Lux/F1.2

S/N Ratio > 48 dB

Lens 3.6mm, Built-in lens, prime lens

IR Distance 5-30 M

Number of LED ￠5*36pcs IR LED

LED Service Life 30,000 h

Video Output 1.0 Vpp, 75Ω BNC

Power Supply DC12V, 120mA

Sync System Internal

Shutter Speed PAL(1/50 - 1/100,000 Sec), NTSC (1/60 - 1/100,000 Sec)

Gamma Correction >0.45

AGC Auto

White Balance Auto

Back Light Compensation Auto

Operation Temperature (Humidity) -20oC - 60oC (Humidity:95% max)

Day/Night Support IR-CUT
